are pictures of the development of the motor mount for the two 9" diameter
motors, installation of the motors, motor controller and contactors.

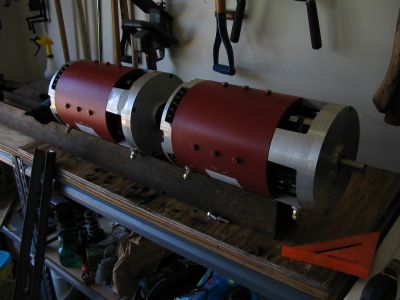

| Aligning the motors for construction of the motor mount:

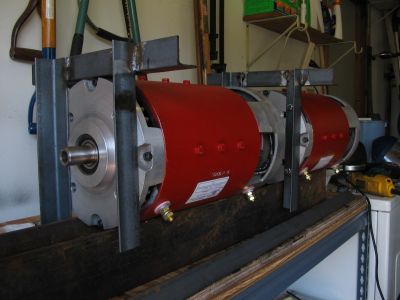

| Welded uprights attached to motor end plates:

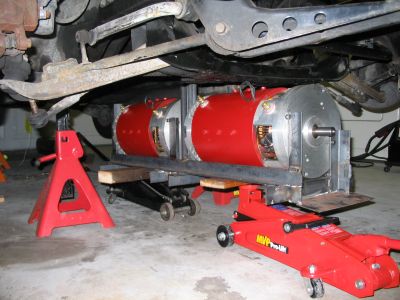

| Preparing to install
| Loading the motors
in the car:
| Almost installed!

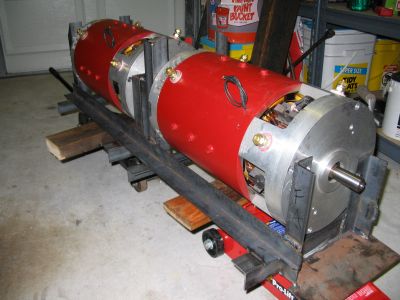

Motor assembly is lined up in position to check fit. Next step is to weld
mounting flanges on the sides to attach to the existing transmission attachment
| Close-up view of
Z2K and control electronics. The interface to the Zilla is on the left side
of the platform. Next to it is the Series/Parallel contactor which provides
an "electric transmission". Next is another pair of contactors which are
used for Forward/Reverse switching. All the way on the right is the main
contactor, which is used to provide power to the controller only when the
car is turned on.
more pictures are on the way. Keep checking back!
